Skegness 33kV Substation, Lincolnshire

Western Power Distribution (WPD) have decided to build a new brick built switch room to replace the existing ’weather beater’ style construction at Skegness 132/33V Substation. The works required were to undertake the installation and jointing of onsite EHV cables (both permanent and interconnection works) & the circuit transfers.

The works were successfully completed on time & budget.

Scope:

• · Installation of 7 x sets of 3 33kv 400mm separable connectors
• · Installation of 7 x sets of 3 33kv Euromold surge arresters
• · Installation of 4 x sets of 3 33kv 630mm size 3 pfisterer inner cone plug terminations
• · Installation of 2 x sets of 3 33kV size 3 pfisterer inner cone dummy plugs
• · Installation of 1 x sets of 3 33kv single core transitional straight joints (1c H Type PILC – 1c EPR)

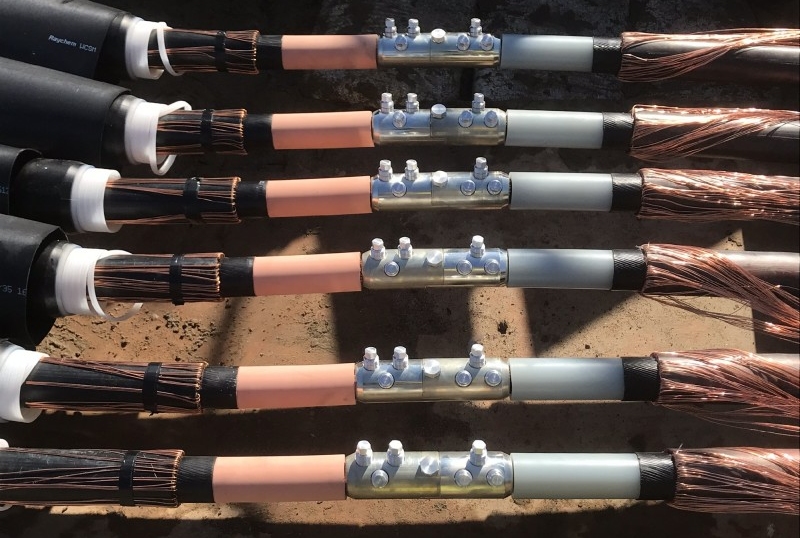

• · Installation of 1 x sets of 3 33kv single core 400mm XLPE straight joints (XLPE – XLPE)
• · Installation of 5 x 33kv transitional Trifurcating joints (3c H type PILC – 3x 400mmm EPR)
• · Installation of 6 x sets of 3 33kv single core 630mm XLPE straight joints (XLPE – XLPE)

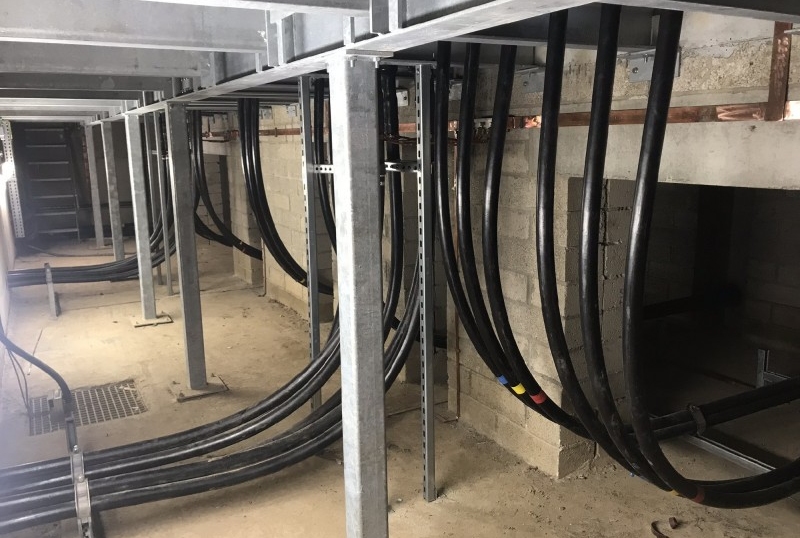

• · Supply & installation of cable management within the cable basement
• · Site supervision / standby & project management for all contracted works

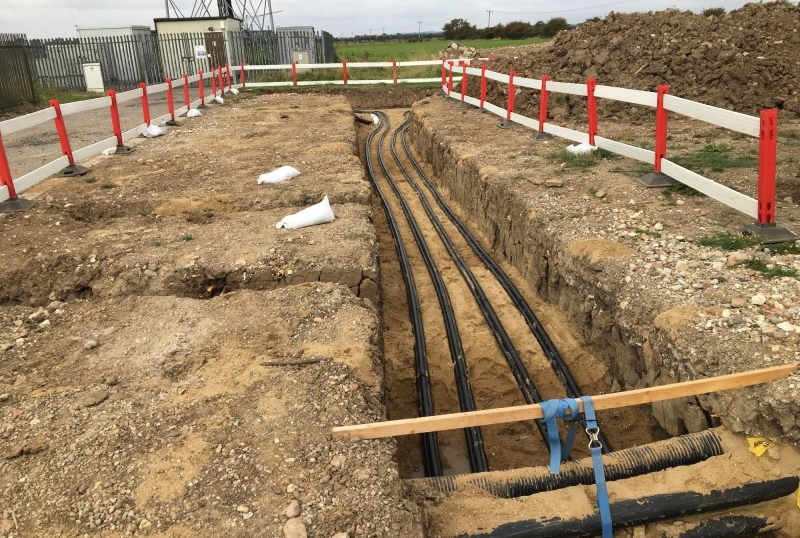

• · Excavation & reinstatement of all trenches & joint bays
• · Installation of 7 x 3 phase sets of 400mm EPR 33Kv feeder Circuits
• · Installation of 4 x 3 phase sets of 630mm EPR 33Kv Grid Transformer Circuits
• · Provision of marked up as built drawings For Installed Cable Routes
